Incepted in the year 1997, Master Metrology is one of the renowned manufacturers and exporters of Precision Engineered Gauges. Our company was started by Mr. S.R. Hande and Mr. R.G. Hande who has over 30 years of experience in this domain. They have worked in various companies in Switzerland, United Kingdom & Germany. We are ISO 9001:2008 Certified Company and work towards of offering clients with gauges that are perfectly as per the ISO Standards. Our personnel work relentlessly to offer clients with gauges that are reliable and works with varied dimensional controls.

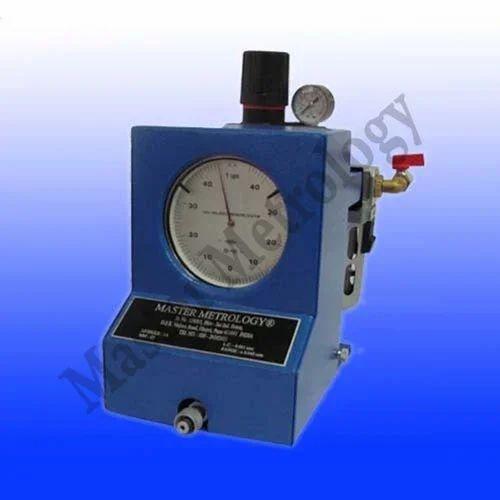

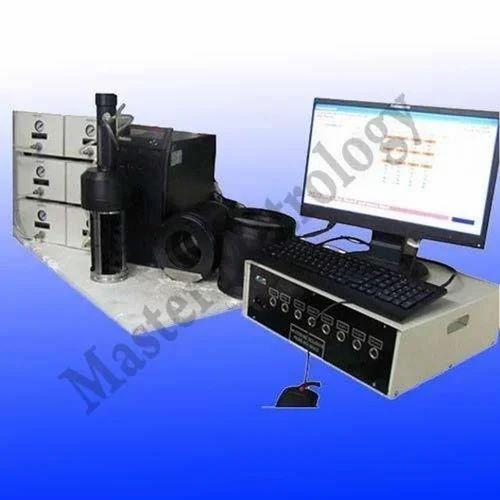

We have established ourselves as one of the premier names in providing complete gauging solutions for measuring dimensional lengths. Our manufacturing unit also enables us produce impeccable range of handheld gauging equipment such as limit gauges, air gauges, electronic gauges, and multi gauging. Moreover, we strive to offer clients with excellent solution for their gauging requirements. We also have gained the experience to offer clients with a customized range to meet their specific requirements.
Under the guidance of our Manager, Ms. Nisha Kulkarni, we have scaled to new heights of success. Our team has benefited from her leadership and her experience in this domain. She works as a mentor and guide whilst making the team efficient in handling critical clients’ requirements with utmost efficiency.
Groove width checking gauges which can be inserted radially and successive GO and NOGO insertions can check whether the groove width conforms to limit specs.
Reverse Engineering of threads by identifying the mon standard thread sizes of components and suggesting tolerance limits.
Trapezoidal Thread Gauges as per DIN 103

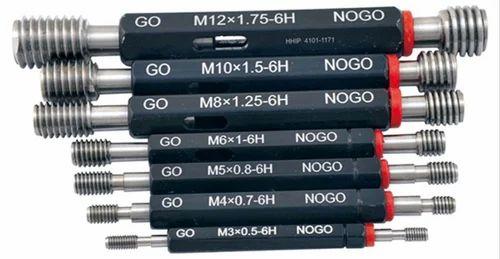

Our best selling product is metric thread gauges. Size : 1mm to 350mm. Pitch 0.25 to 8 mm

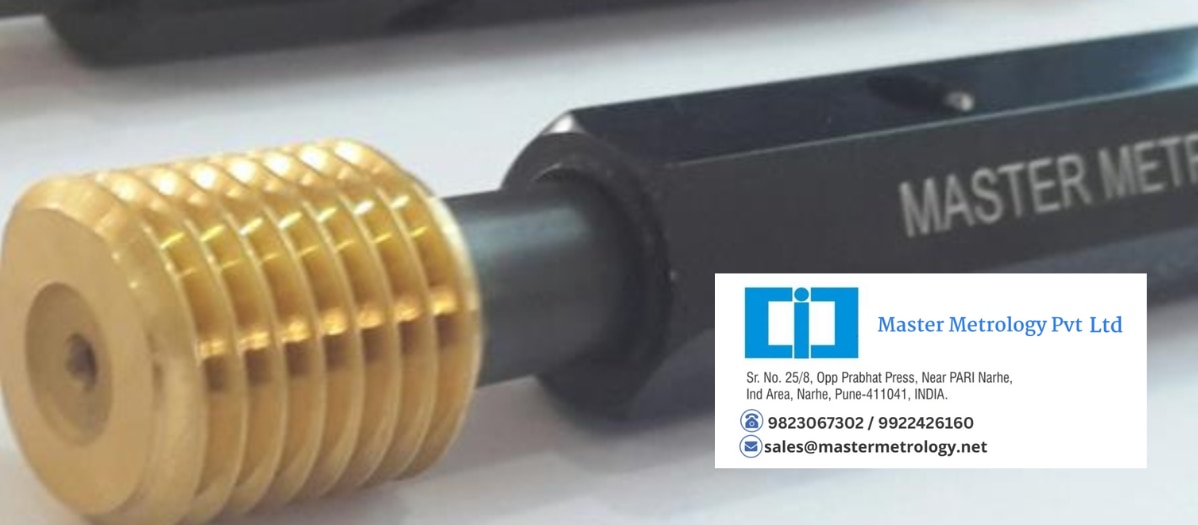

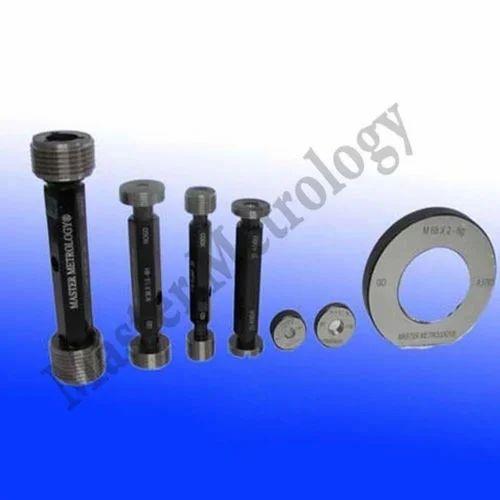

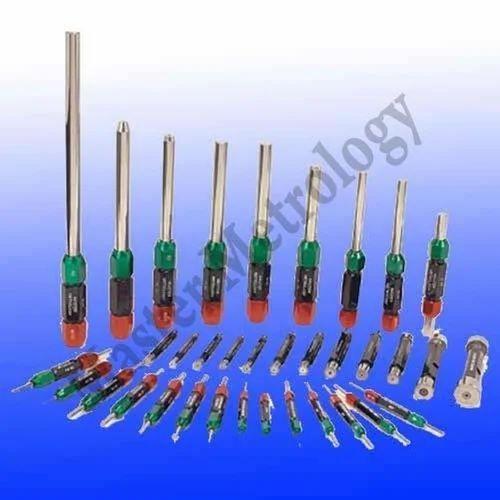

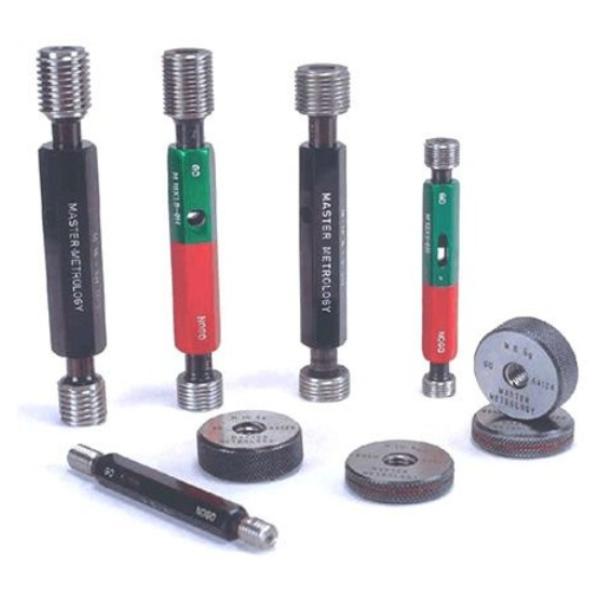

Thread Plug Gauges
Our range of Thread Plug Gauge are appreciated for following features : Reliable Precise & Accurate Fast Service Economical Other Details : Master Metrology manufactures Thread Plug and Thread Ring Gauges as per details mentioned in given table and attached PDF's. These Gauges are manufactured from high grade tool steel which is carefully machined hardened, tempered and stabilized for dimensional accuracy. All the thread gauge undergo stringent inspection process while machining and after machining. A calibration certificate traceable to NPL New Delhi indicating Specified dimensions and actual measured dimensions is supplied along with every gauge. All the gauge handles are laser marked with size, Serial Number and Make. Gauges are Supplied dult 'plastipeel. Coated to protect them from dirt, dust and rust Most of the standard Gauges are available ex-stock. Special Gauges can be designed manufactured and supplied to customer requirements. Calibration services for all the type of thread plug and thread ring Gauges are available using latest equipments such as metroscope & Digital Readouts. Our other products include Tungsten Carbide and Steel plain Gauges, Pin Gauges, Ring Gauges, Snap Gauges, Slip Gauges, Width and special made-to-order Gauges. Manufacturing Standards are subject to change without notice.
Thread Ring Gauges
Thread Ring Gauge are appreciated for following features : Reliable Precise & Accurate Fast Service Economical Sr. No Thread Type Size Range Standard 1 Metric M 1.0 to M 200 International Organisation for Standardization(ISO) Basic Dimension : ISO:724-1978(E), ISO:965/1-1980(E) Gauging Practice : ISO:1502-1978 (E) Indian Standard (IS) Basic Dimension : IS4218 part III- 1976, IS4218 part IV-1976, IS 2334-1975 2 Unified ( UNC, UNF, UnEF, UNS, UN) No. 1-64 to 4” American Standard Basic Dimension : ANSI / ASME B1. 1-1982 Gauging Practice : ANSI / ASME B2. 1-1982 Class of Fit : Plugs : 2B (Medium) Rings : 2A (Medium) British Standard : Basic Dimension : B.S. 1580 – 1962, Gauging practice : B.S. 919 Part I/1960 3 Whit worth (BSW, BSF) 1/8” to 4” Basic Dimension : B.S. 84-1956 Gauging Practice : BS 919, Part II, 1971 Request Callback Other Details: Minimum Order Quantity: 1 Piece

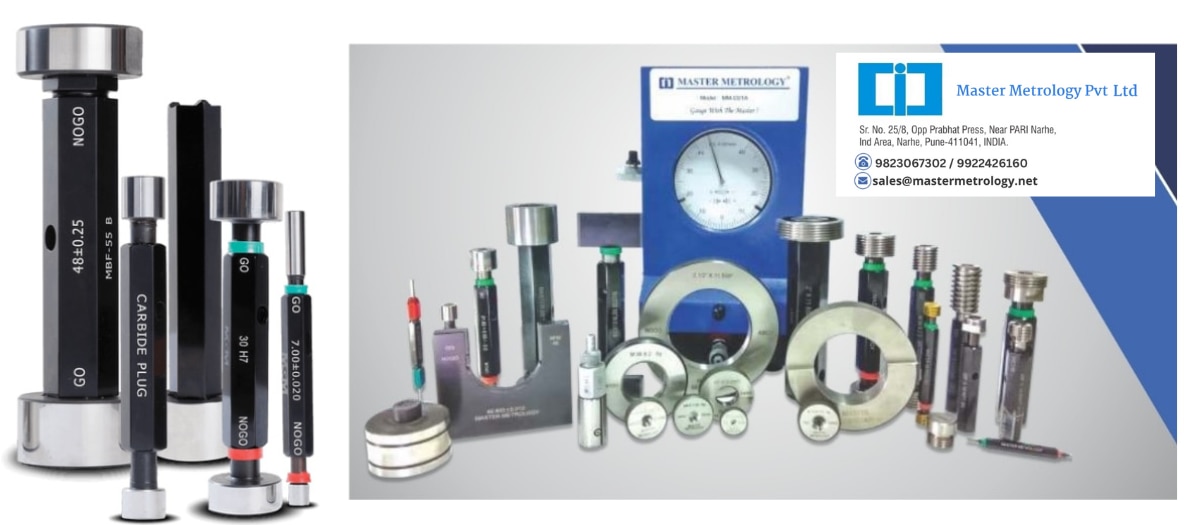

Our comprehensive range of Hand Gauging - Thread Gauges is manufactured with minute attention to details. These gauges are very user friendly and offer highly productive services to heavy engineering and manufacturing industries. We offer the range in multiple dimensions to suit specific requirements
We are manufacturer of thread gauges based in pune
